Conforming Standards:
● GB3906-2006 "3~35kV AC Metal-Enclosed Switchgear"
● GB11022-99 "General Technical Conditions for High-Voltage Switchgear and Controlgear"
● IEC60298 "AC Metal-Enclosed Switchgear and Controlgear for Rated Voltages Above 1kV Up to and Including 50kV"
● DL404-97 "Technical Conditions for Ordering Indoor AC High-Voltage Switchgear"
Operating Environmental Conditions
(1) Normal Environmental Conditions
● Ambient Air Temperature: Upper limit: +40℃, Lower limit: -10℃.
● Altitude: Not exceeding 1000m.
● Relative Humidity: Daily average not greater than 95%, Monthly average not greater than 90%.
● Earthquake: Seismic intensity not exceeding Grade 8.
● Ambient air free from obvious pollution by corrosive or flammable gases, water vapor, etc.
● No severe pollution or frequent intense vibration; the severity design under harsh conditions meets Class 1 requirements.
(2) Special Operating Conditions
If used beyond the specified normal environmental conditions, it shall be negotiated between the user and the manufacturer.
Technical Indicators
● Rated Voltage (kV): 3.6／7.2／12
● Power Frequency Withstand Voltage (kV): 42 (1min)
● Impulse Withstand Voltage (kV): 75
● Rated Frequency: 50Hz
● Rated Current (A): 630～1250
● Rated Thermal Stability Current (kA, 4s): 20～31.5
● Rated Dynamic Stability Current (kA): 50～80
● Rated Short-Circuit Breaking Current (kA): 20～31.5
● Rated Short-Circuit Making Current (kA): 50～80
● Rated Voltage for Opening/Closing and Auxiliary Circuits (V): DC 24, 36, 48, 60, 110, 220; AC 110, 220
● Ingress Protection (IP) Rating: IP2X
Structure Introduction

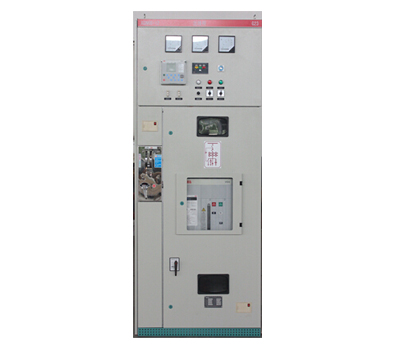

The cabinet body of the switchgear is welded with high-quality angle steel. The circuit breaker compartment is located in the middle (lower) part of the cabinet, facilitating installation, commissioning, and maintenance. It is standard equipped with ZN63A (VS1-12) circuit breaker and provided with a pressure relief channel to ensure personal safety. An advanced and reliable rotary isolating switch is adopted, allowing safe access to the circuit breaker compartment for maintenance while the main busbar is energized. The overall cabinet IP rating is IP2X. The equipment is equipped with a reliable and fully functional mandatory mechanical interlocking device, which simply and effectively meets the "five-prevention" requirements. It has a reliable grounding system. An observation window is installed on the door to clearly observe the working status of the internal components. The operating mechanism interlock adopts the JSXGN interlocking mechanism used in XGN2-12 switchgear, which is simple, reliable, convenient, and practical. The incoming and outgoing cables are routed below the front part of the cabinet bottom for easy user connection.
